Heater Vent Duct Flap Box

There were at least two types used. One incorporated the deflector into the main duct and the other had the deflector mounted on the floor. I'll get some photos.

Rick

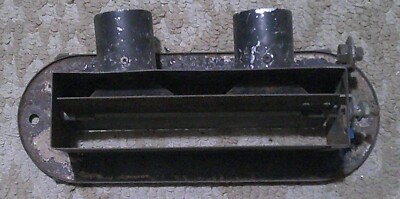

First two photos of deflector built in type. Maybe from Tiger or later series 5? Third photo is the floor (tunnel) mounted deflector for the type in the eBay listing. Not sure about series 1 and 2 or Tiger, but my series III and early series 5 used the floor deflector type in the eBay listing.

Rick


The seperate defector was on the series I/II..it actually makes a big difference as the heat flows to the right Naturally due to the location of the box and tunnel...I never understood why passengers complained it was cold when my legs and feet were always toasty ....then I went into the passenger seat one trip and realised the heat flowed right...I didn't have the deflector... When I added it the issue resolved
